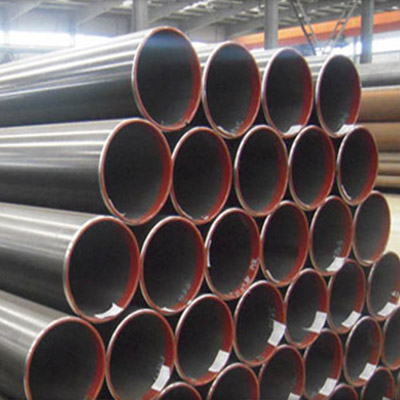

Longitudinal Submerged-Arc Welded Steel Pipe
Process: LSAW - UO(UOE), RB(RBE), JCO(JCOE, COE); DSAW - Double Submerged Arc Welded
Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711
Certificate: API 5L PSL1 / PSL2, API 5CT
Out Diameter: 323.9mm -1820mm(12''-72'')
Wall Thickness: 5.0 - 50mm
Length: 6 – 12m
Steel Grade:
API 5L: GR B, X42, X46, X56, X60, X65, X70 ASTM A53: GR A, GR B, GR C EN: S275, S275JR, S355JRH, S355J2H
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204 / 3.1B
Payment Terms: T/T， L/C
Trade terms: FOB,CFR,CIF
Delivery Time: Within 30 days
Delivery way: sea transportation
Delivery Detail：Depends on your order quantity.
Packaging Detail: Packing in bundles or for the client's requirement
Supply Ability: 500 Metric Ton/Metric Tons per Day

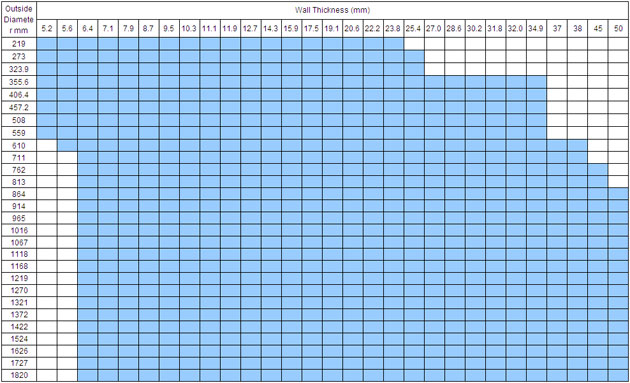

Wall Thickness(mm):
