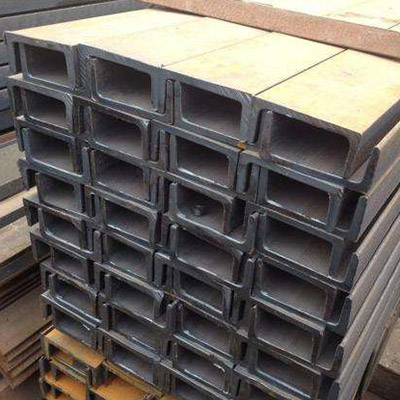

UPN Channels

Product Description

UPN CHANNELS

Specification
Depth*flange width
(mm)

Web thickness
(mm)

Flange thickness
(mm)

Weight
(kg/m)

UPN 80    80*45

6

8

8.64

UPN 100    100*50

6

8.5

10.6

UPN 120    120*55

7

9

13.4

UPN 140    140*60

7

10

16

UPN 160    160*65

7.5

10.5

18.8

UPN 180    180*70

8

11

22

UPN 200    200*75

8.5

11.5

25.3



BRITISH CHANNELS

Specification
Depth*flange width
(mm)

Web thickness
(mm)

Flange thickness
(mm)

Weight
(kg/m)

127*63.5

6.4

9.2

14.9

152.4*76.2

6.4

9

17.9


STEEL CHANNELS

Specification
Depth*flange width
(mm)

Web thickness
(mm)

Flange thickness
(mm)

Weight
(kg/m)

127*44

4.5


8.2

152*48

4.7


10.7
