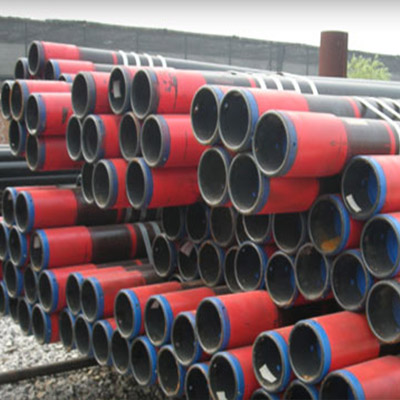

Oil Tubing

Product Description

Process:ERW and Seamless

Standard:API 5CT

Certificate: Tubing: LTC, STC, BTC, VAM.Tubing: NUE, EUE.

Out Diameter: Casing: OD 4 1/2"- 20" (114.3mm-508mm)

Tubing: OD 2 3/8" - 4 1/2" (60.3mm-114.30mm)

Wall Thickness: 0. 205"- 0.635"

Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)

Steel Grade: H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125

Surface: Corrosion proofing water based paint

End: Beveled, Square cut. And pipe protection cap especially for casing and tubing.

Heat treatment: Normalized, Quencher+Temper


Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process. Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes.

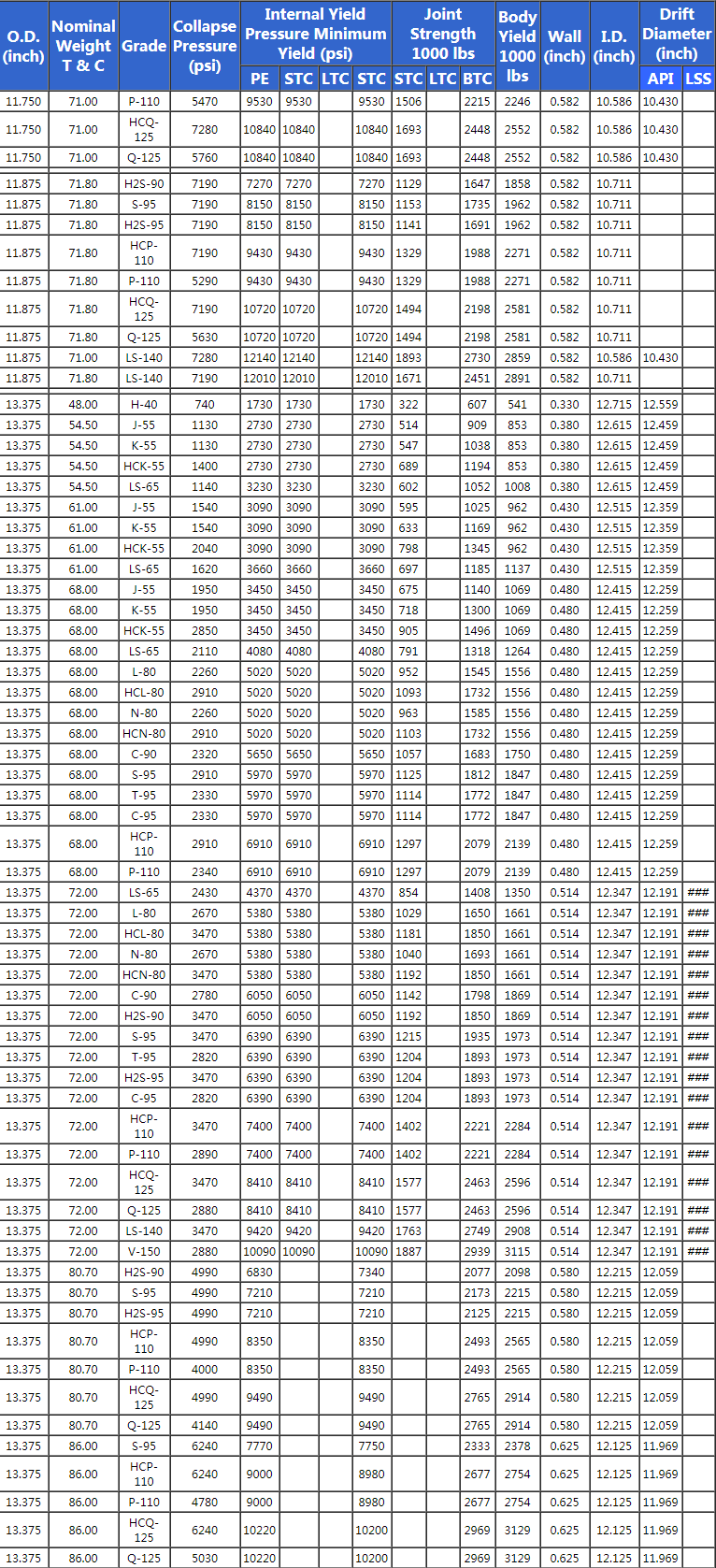

specification
